SMP RF Coaxial Connectors

The SMP connector series represents a high-density, millimeter-wave interconnect solution designed for applications requiring blind-mate capability in space-constrained environments. This innovative push-on coupling system combines RF performance with exceptional mechanical reliability.

For information on our comprehensive range of RF connectors and other types of connectors, please visit Baierde.

Contact

PDF Download

SMP RF Coaxial Connectors Specifications

Product No.	Pic	Flat Design	Specifications
SMP-J1.5			Characteristic Impedance: 50 Ω Dielectic Withstanding Voltage: 500V Frequency range with flexible cable: 0~12.4 GHz Frequency range with semi-rigid/flexible cable: 0~40 GHz Insulation resistance: ≥5000MΩ VSWR with flexible cable: ≤1.15+0.02F VSWR with semi-rigid/flexible cable: ≤1.10+0.02F Smooth bore durability: 1000 Cycles Limited detent durability：500 Cycles Full detent durability：100 Cycles Radial misalignment: ±0.25mm Axial misalignment: 0, ±0.25mm

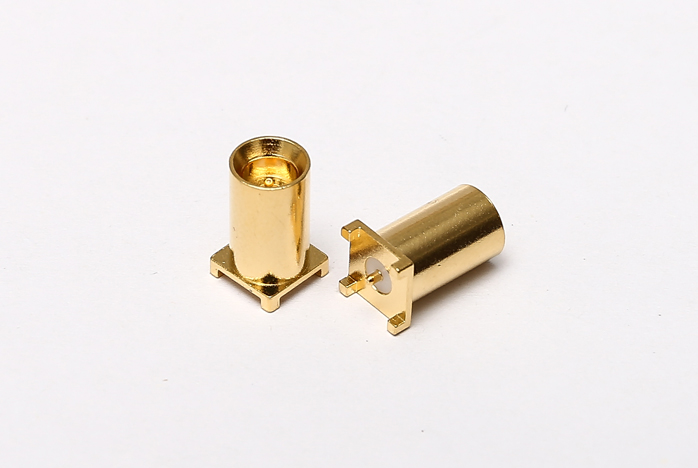

SMP-JE

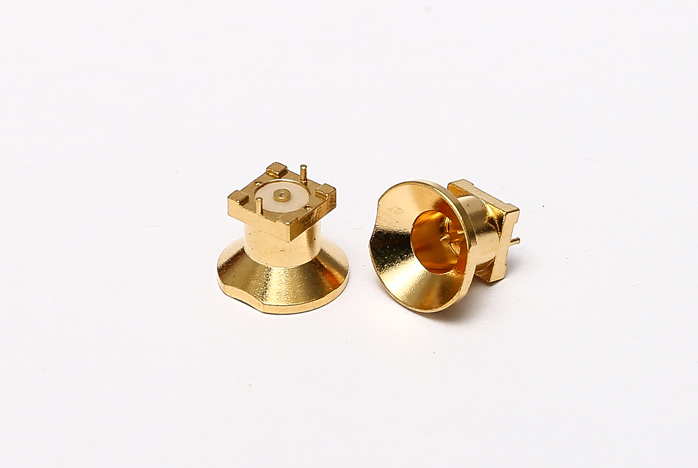

SMP-JHD

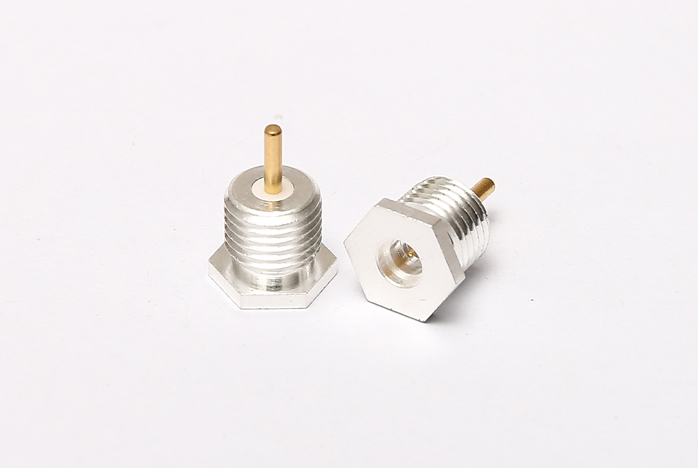

SMP-JY4
SMP-JYD4

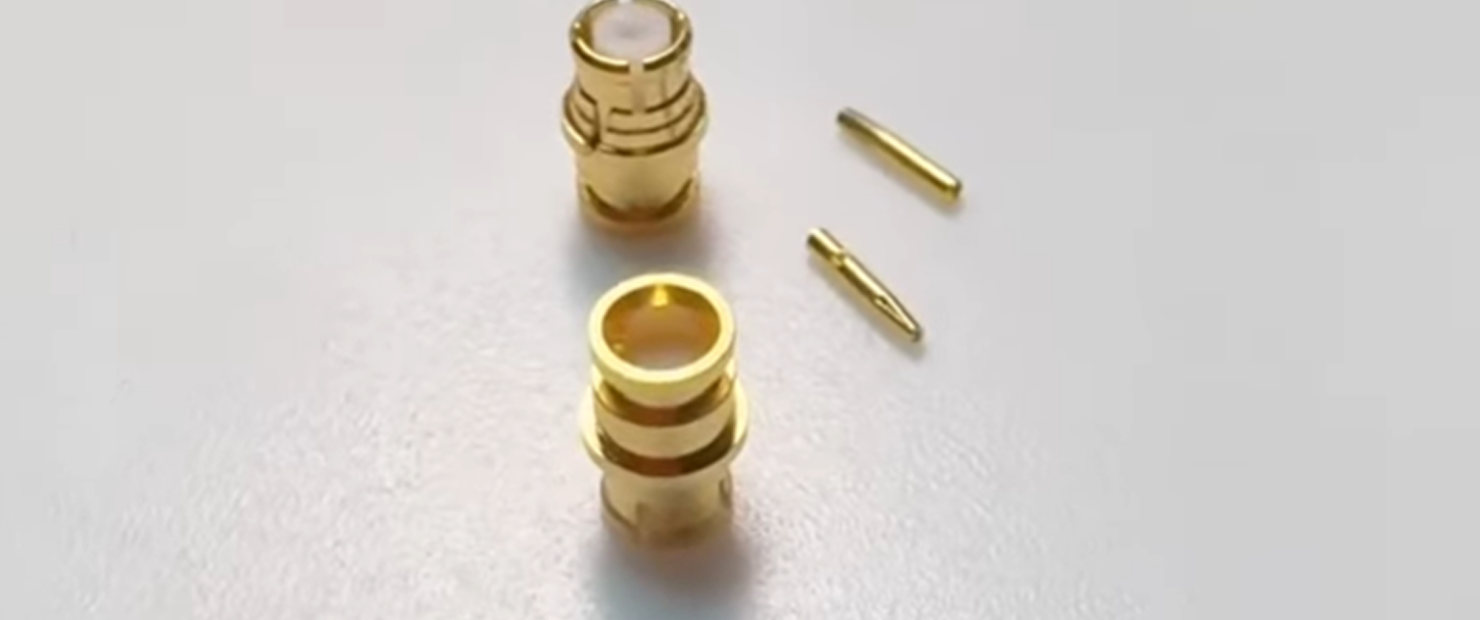

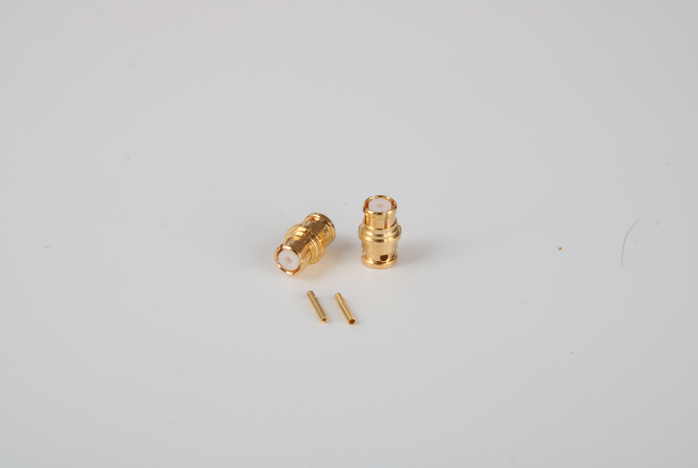

SMP-KB2

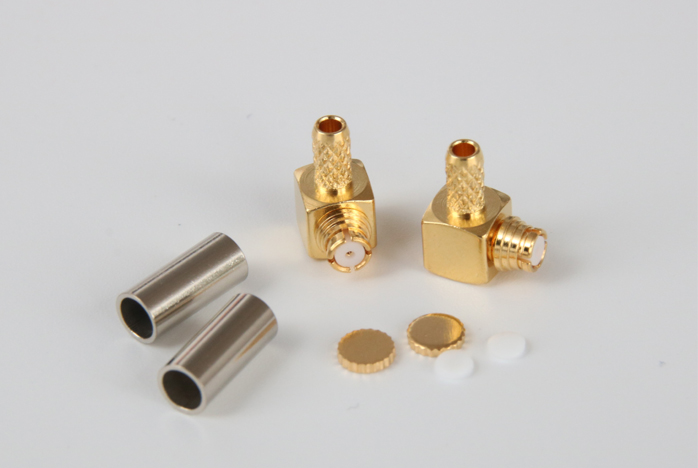

SMP-KW1.5

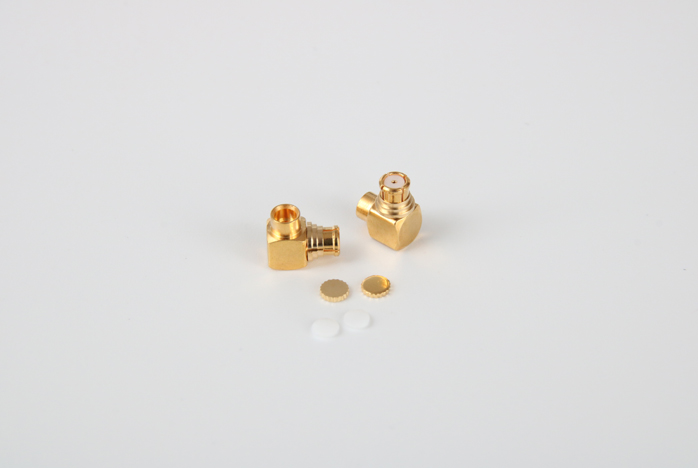

SMP-KWB2

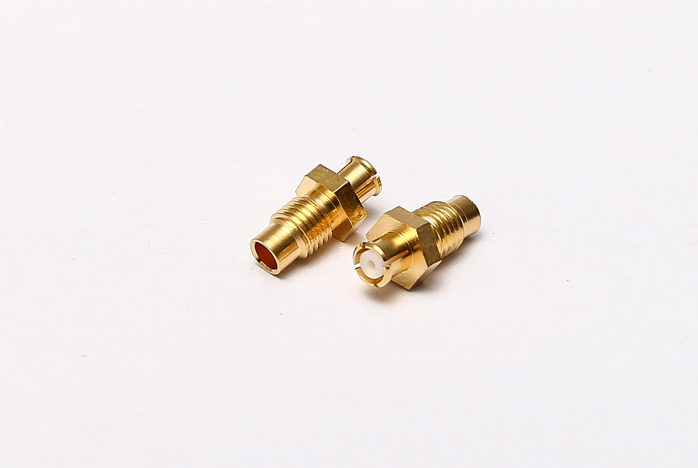

SMP-KYB2

SMP RF Coaxial Connectors Videos
