N Type RF Coaxial Connectors

  • Type N Coaxial Connector N J Double Teeth
  • N Type RF Connector N J240
  • N Type RF Connectors N JW 3
  • Type N RF Connector M J400
  • Type N Coaxial Connector N J Double Teeth
  • N Type RF Connector N J240
  • N Type RF Connectors N JW 3
  • Type N RF Connector M J400

The N-Type connector series represents the industry-standard high-performance RF interconnect solution, designed for robust applications requiring reliable signal transmission across a broad frequency spectrum. As one of the most widely used RF coaxial connectors in professional RF systems, this series combines exceptional electrical performance with rugged mechanical construction.

For reliable performance in demanding applications, choose the industry-proven N-Type series. Contact Baierde, your professional RF coaxial connector manufacturer, for robust interconnect solutions.

Specifications of N Type RF Coaxial Connectors

Product No.PicFlat DesignSpecifications

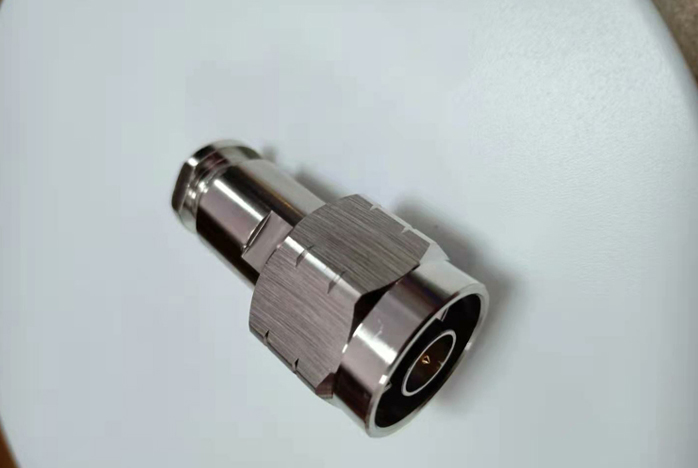

N-J240RF Coaxial Connectors N J 240

Temperature range: -65~+125℃


Insulation resistance: ≥5000MΩ


Characteristic Impedance: 50 Ω


Dielectic Withstanding Voltage: 1500V


Frequency range: 0~11 GHz


Voltage rating: 1000V


Center conductor contact resistance: ≤0.0015 Ω


Outer conductor contact resistance: ≤0.0002 Ω


Insertion force: ≤8.9N


Withdrawal force: ≥0.56N


VSWR: ≤1.30


Durability: 500 Cycles

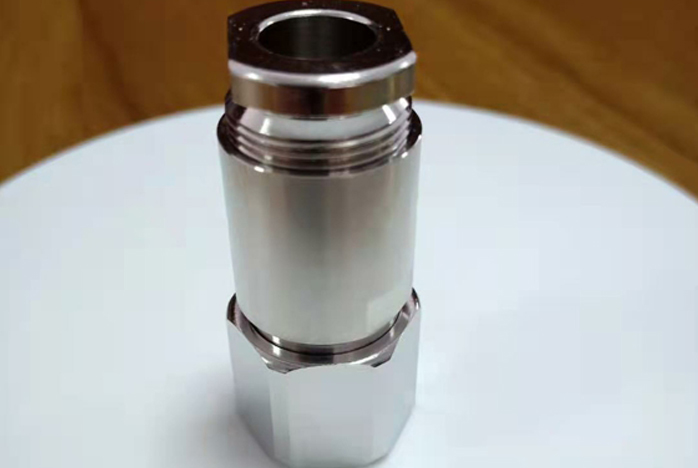

M-J400


RF Coaxial Connectors M J400

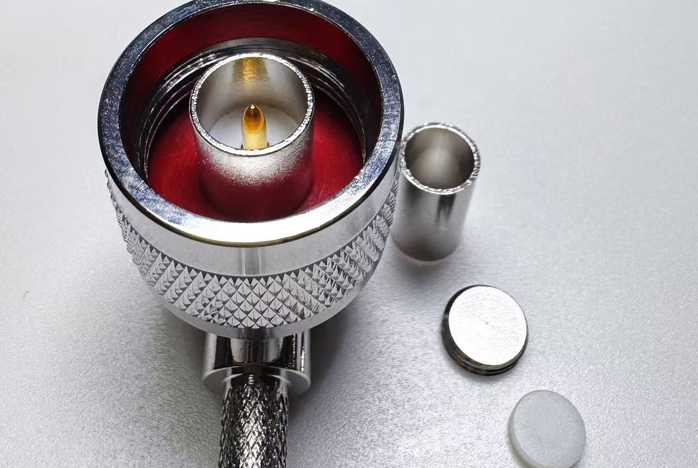

N-JW-3RF Coaxial Connectors N JW 3

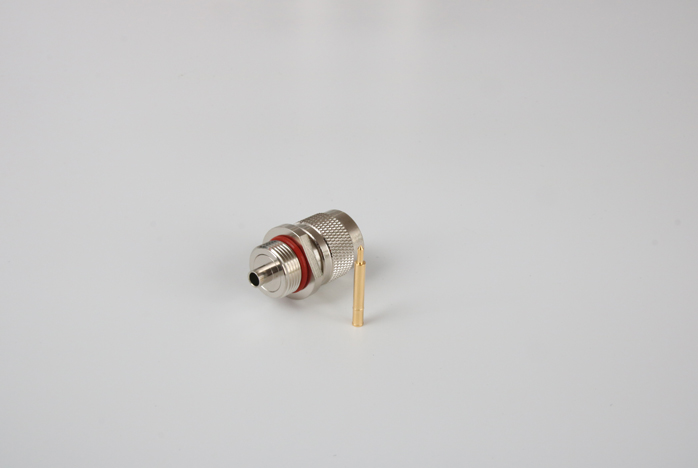

N-J Double TeethRF Coaxial Connectors N J Double Teeth


N Type RF Coaxial Connectors Videos

N-JW-3
N-JW-3
