BNC RF Coaxial Connectors

The BNC connector series represents the industry-standard quick-connect RF solution, combining reliable bayonet coupling with robust electrical performance. This ubiquitous RF coaxial cable connectors series from Baierde is designed for applications requiring frequent connection/disconnection, delivering consistent performance across a wide range of professional and commercial applications.

Contact

PDF Download

Specifications of BNC RF Coaxial Connectors

Product No.	Pic	Flat Design	Specifications
BNC-J1.5			Temperature range: -55~+165℃ Insulation resistance: ≥5000MΩ Characteristic Impedance: 50 Ω Dielectic Withstanding Voltage: 1500V(rms) Frequency range: 0~4 GHz Center conductor contact resistance: ≤0.002 Ω Outer conductor contact resistance: ≤0.0025 Ω VSWR: ≤1.30 Voltage rating: 500V(rms) Disengage force: ≥0.6N Durability: 500 Cycles
BNC-JW1.5

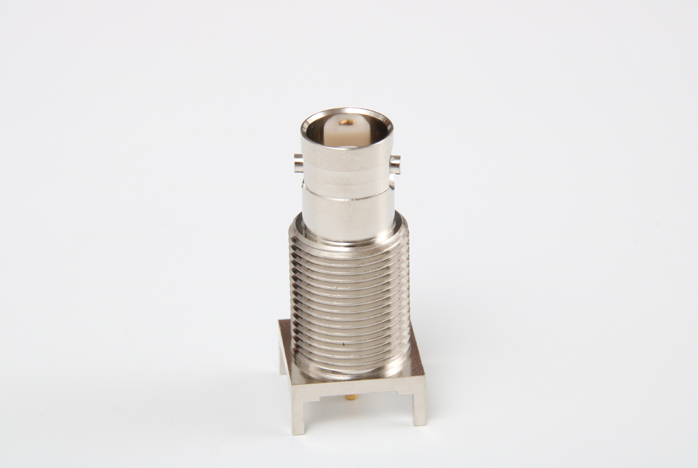

BNC-KH01

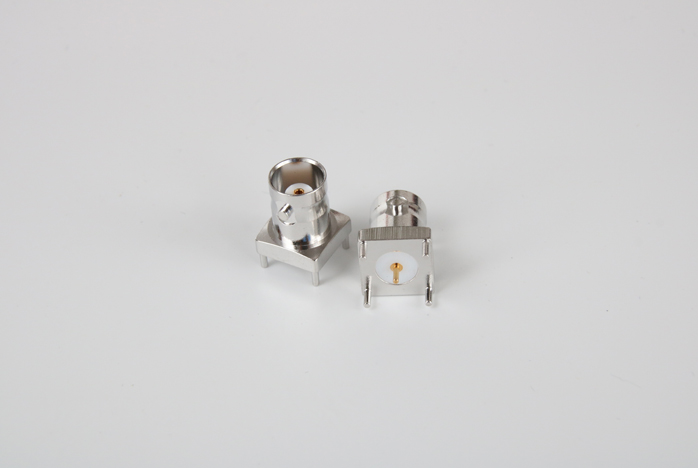

BNC-KHD

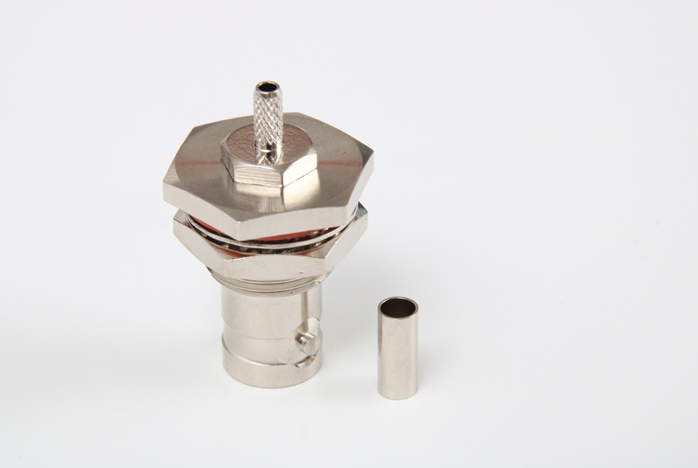

BNC-KY1.5

BNC RF Coaxial Connectors Videos

A professional manufacturer of RF Coaxial Connectors with over 20 years of experience


