D4 RF Coaxial Connectors

  • D4 RF Coaxial Connectors D4 JWE
  • D4 RF Coaxial Connectors D4 K1 5
  • D4 RF Coaxial Connectors D4 JWE
  • D4 RF Coaxial Connectors D4 K1 5

The D4 RF coaxial connector series is a high-power, low-loss interconnect designed for microwave and RF systems requiring superior voltage handling and signal integrity. Originally developed for telecom and defense applications, this robust RF connector series available through Baierde features a 7/16"-28 threaded coupling mechanism, making it ideal for high-power transmitters, broadcast equipment, and aerospace systems.

Contact D4 RF Coaxial Connectors PDF Download

Specifications of D4 RF Coaxial Connectors

Product No.PicFlat DesignSpecifications

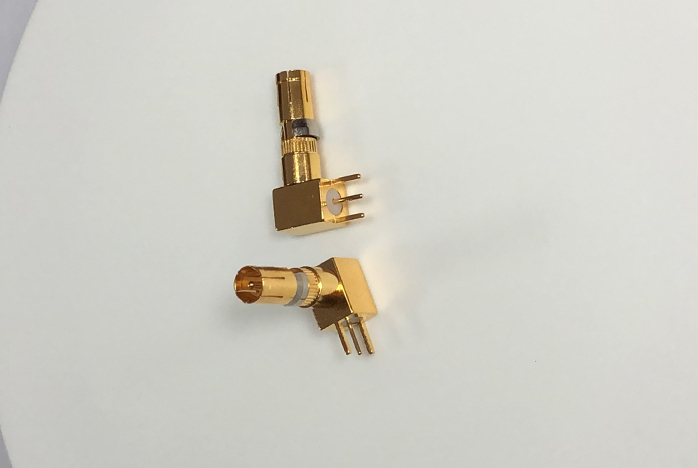

D4-JWERF Coaxial Connectors D4 JWE

Temperature range: -55~+125℃


Insulation resistance: ≥1000MΩ


Characteristic Impedance: 50 Ω


Dielectic Withstanding Voltage: 1000V


Frequency range: 0~2 GHz


Center conductor contact resistance: ≤10mΩ


Outer conductor contact resistance: ≤5mΩ


VSWR: ≤1.06(0~0.1 GHz)/≤1.22(0.1~0.5 GHz)/≤1.50(0.5~2 GHz)


Durability: 500 Cycles

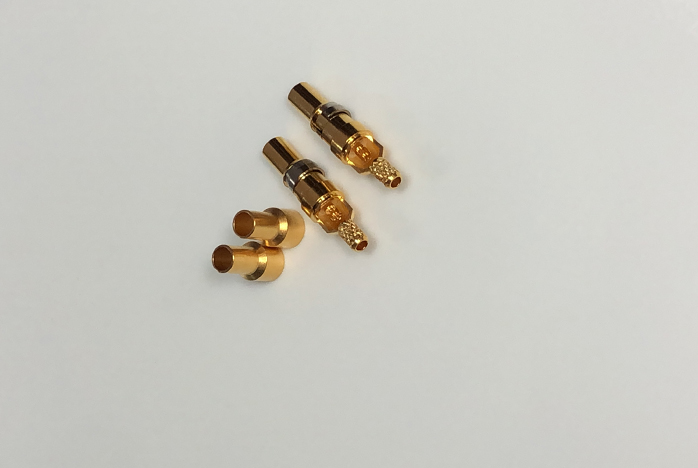

D4-K1.5RF Coaxial Connectors D4 K 1.5


D4 RF Coaxial Connectors Videos

D4-JWE
D4-JWE
